Migrating foundational enterprise data from a legacy Oracle E-Business Suite (EBS) on-premises system to Oracle Fusion Cloud ERP is historically one of the most resource-intensive phases of a digital transformation. Standard manual processes often bottleneck business cutover timelines due to complex extraction scripts, extensive data mapping variations, and error-prone loading steps.

To eliminate these structural vulnerabilities, Tangenz Corporation utilizes its proprietary Tangenz Smart Move Data Migration Tool. This automated data orchestration platform transforms the traditional migration lifecycle into a fully automated pipeline, enabling secure, scalable, and fail-safe ingestion into the target Fusion environment.

Architecture

The automated conveyor belt architecture uses an end-to-end framework that directly extracts from legacy database tables and pushes validated data directly into the cloud endpoints.

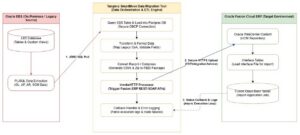

Migration Engine Flow

  1. Extract (Oracle EBS Source): Automated data extraction is handled via optimized PL/SQL staging views. This structural approach guarantees continuous data polling without inducing production database degradation.
  2. Orchestrate (Tangenz Smart Move Engine): The engine actively cleanses, reformats, and transforms transactional data shapes on the fly. It automatically builds compliant CSV structures, establishes property configurations and compresses data directly into a validated File-Based Data Import (FBDI) Zip Bundle.
  3. Load (Fusion Cloud Ingestion): Ingestion occurs via automated REST/SOAP API pipelines using the ERPIntegrationService. Files are pushed securely into the Oracle WebCenter Content (UCM) repository, automatically triggering target cloud interface tables and subsequent base-table import application jobs.

Why Smart Move Outperforms Manual FBDI Uploads

Traditional FBDI migration relies on downloading macro-enabled Excel sheets, manually populating them, and uploading files to Fusion.

This approach introduces risks:

  • High Error Rates: Manual edits often lead to invalid records.
  • Downtime: Preparing files during cutover slows down business operations.
  • Limited Visibility: Failures are hard to trace, leaving compliance gaps.

By contrast, Smart Move ensures:

  • Zero Manual Dependencies: No Excel macros or manual file handling.
  • Fail-Safe Compliance: On-the-fly syntax validation prevents bad records from leaving staging.
  • Real-Time Provenance: Complete lineage tracking for every data point.
  • Dynamic Scheduling: Scales from trickle testing to high-throughput bursts during production cutovers.

Strategic Benefits

  • 100% Automation: Eliminates human error and accelerates migration timelines.
  • Audit-Ready Logs: Built-in data provenance supports compliance and governance.
  • Cutover Window Reduction: Faster execution minimizes downtime during go-live.
  • Backpressure Control: Automatically pauses inbound EBS extraction queries if destination Cloud ERP endpoints hit processing limits or experience API throttling.
  • Dead Letter Queues (DLQ): Isolates malformed rows into structured error logs for quick remediation without halting the main data execution pipeline.
  • Post-Load Validation Loop: Actively monitors cloud validation endpoints at structured periods, automatically downloading execution logs.
  • 0% Manual Macro Dependencies: Eliminates manual human touchpoints associated with downloading, copying, and zipping FBDI files entirely.
  • 100% Repeatable Architecture: Standard blueprint configurations can be rapidly cloned across multiple Dev, Test, and Production environments.

Use Case: End-to-End Purchase Order Migration

To demonstrate the capability of the Tangenz Smart Move Data Migration Tool, this use case outlines the end-to-end migration steps required to move open Purchase Orders (POs) from Oracle EBS to Oracle Fusion Cloud, following standard Oracle Cloud framework compliance.

Phase 1: Source Extraction & Validation

The engine executes optimized JDBC extraction scripts against the legacy EBS database. It targets open purchase order schemas (headers, lines, schedules, and distributions) via optimized staging views. Data is verified locally against cross-reference tables to confirm that active vendors, items, and procurement agents map to their new cloud equivalents.

Phase 2: Automated Structural Transformation

Rather than forcing administrators to manually fill out the standard PO_HEADERS_INTERFACE, PO_LINES_INTERFACE, and PO_DISTRIBUTIONS_INTERFACE spreadsheets, the Tangenz tool converts the extracted database records into compliant CSV format on the fly. The engine auto-populates critical tracking properties, formats timestamps to meet ISO cloud requirements, and builds the required compressed FBDI ZIP package programmatically.

Phase 3: Secure Cloud Ingestion

The tool invokes the Oracle Fusion ERP ERPIntegrationService API securely over HTTPS. It posts the validated Purchase Order ZIP package directly to the Oracle WebCenter Content (UCM) repository under the prc/purchaseOrder/import account.

Phase 4: Interface Loading & Base Table Import

Once the bundle rests securely in the UCM repository, the tool automatically triggers the first asynchronous database step: the Load Interface File for Import scheduled process. This populates the Fusion PO interface tables. Upon successful loading, the engine automatically issues the downstream execution command to trigger the Import Orders scheduled process, pushing valid data from the interface into the core Fusion Cloud Base Tables.

Phase 5: Asynchronous Reconciliation & Exception Handling

Throughout the cycle, the tool runs an execution monitoring loop. If structural validation faults happen inside the cloud engine, the tool downloads the targeted execution logs automatically. Malformed PO lines are isolated into the Dead Letter Queue for rapid correction, while valid orders are pushed live. Finally, the reconciliation engine matches the number of rows extracted from Oracle EBS against the rows successfully ingested into the Fusion Base Tables to ensure perfect balance sheet alignment.

Conclusion

Tangenz Corporation’s Smart Move Data Migration Tool redefines how enterprises migrate from Oracle EBS to Fusion Cloud ERP. By eliminating manual dependencies, ensuring compliance, and accelerating cutover execution, Smart Move empowers organizations to achieve a smooth transition with minimal risk and maximum efficiency.
